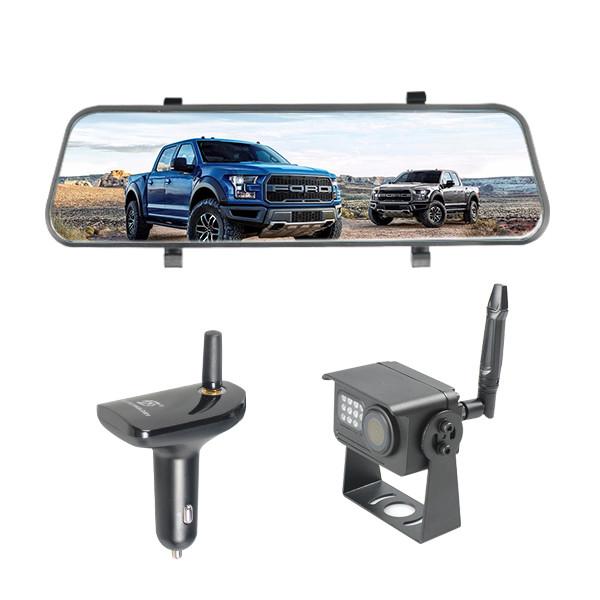

10 Inch Touch Screen 640*360 Wireless Rearview Camera 2 Channel
Wireless Rearview Camera 10 Inch Touch Screen Support 2 Channel AHD Receiver
Specification:
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 Mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Features:
1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR
2. 10 Inch big touch screen and Anti-glare screen,Storage Temperature -20℃-70℃.
3. Support front and back 1080P dual recording, rear and front image recording.
4. The heavy-duty wireless backup camera captures a 120° horizontal view of the area directly behind your RV/Trailer,nothing can escape from the camera, resolution is 1080P, HD digital transmitter.
5. IP69K Waterproof,Prevent water droplets from gathering on the camera. No need to worry driving in a rainy day
6. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting .
7. Product context : FX909T+FX901R+H10
8. Apply to Vehicles: Trucks, Van, Agricultural vehicles, Construction vehicles, RV, RV Trailer
Competitive Advantage:
- Best Quality: All products will be well tested before shipping.
- Competitive price: We are factory directly selling, we are the source.
- Rich experience in Car rearview system.
- Good Guarantee/Warranty:1 years warranty.
- Customer demand is our demand, we always stand in the perspective of customer problems.
